Improved i-AVR technology
Output the power you need
Quieter operation, bigger power
Lifting hook and transport wheels
Easy portable
Output the power you need

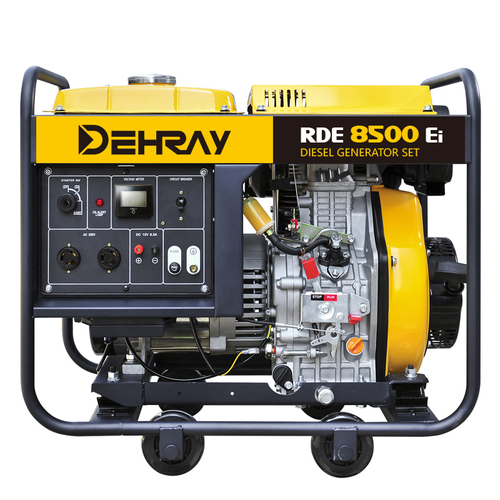

Strong, flexible, general, reliable and durable. You can find the most suitable generator here.
Quieter operation, bigger power
High-efficient combustion system ensures sufficient combustion;
muffler reduces exhaust noise greatly; engine noise is isolated in double structure and absorbed by special lining.
Wide application and wide range capacity can meet all requirements of clients.
Control panel
All operation functions of the generator set are on the control panel, with a digital readable display showing operation time, output voltage and current. Breakers can protect generator set from overload damage.
Lifting hook and transport wheels
Integrated to enable simple and safe loading and transportation.
Easy portable
An open frame configuration means it's easy to handle and store when not in use.
Improved i-AVR technology
Intelligent Automatic Voltage Regulator (i-AVR) is a microprocessor controller.
i-AVR adjustments are driven off the PMG generator versus a sensor winding in traditional AVR systems.
It can also communicate with your computer with a UART-RS232 interface. This allows the generators data: including voltage, current, and battery voltage to be seen from computer.
● Microprocessor, better integration and reliability.
● Parameter monitoring: voltage, current, frequency, output power, running hours, excitation voltage
and excitation current output.
● Soft start function.
● Over excitation limiting protection (OEL).
● Protections: genset over voltage, AVR over voltage, low frequency, over current.
● Parameter regulation (voltage/frequency).
● Over load protection.
● Real time monitoring: generator voltage, excitation voltage & secondary winding voltage.
● Protections: over output voltage, high/low frequency, i-AVR over heating.
● All parameters can be regulated through digital adjustment.
Rated frequency | Hz | 50 60 |
Rated power | kVA | 6.0 6.6 |
Max. power | kVA | 6.6 7.3 |
Rated voltage | V | 115/230 120/240 |
Rated current | A | 52/26 55/27.5 |
Rated rotation speed | r/min | 3000 3600 |
Pole No. | 2 | |
Phase number | Single phase | |
Excitation mode | Self-exciation and constant voltage(with i-AVR) | |
Power factor | COS | 1.0 |
Insulation grade | mm | F |
Engine type | RD192FGET | |
Structure type | Single-cylinder, vertical, 4-stroke, air-cooled, direct-injected |
|
Bore x stroke | mm | 92×75 |
Displacement | L | 0.499 |
Compression ratio | mm | 19 : 1 |
Rated power | kW | 7.6 8.6 |
Lubrication system | Pressure splashed | |
Lube oil brand | Above CD or SAE 10W-30, 15W-40 | |
Lube capacity | L | 1.65 |
Starting system | 12V Electric starter | |
Charging generator capacity | V-Ah | 12V 36Ah |
Fuel consumption ratio | g/kW.h | 260 270 |
Fuel type | Diesel : 0# (summer), -10# (winter), -35# (chillness) |
Panel type | General panel | |
Output | Receptacle | 2-Single phase |
Output | Connection pole | without |
Nosie level(7m) | dB(A) | 77 |
Fue tank capacity | L | 13.5 |
Overall dimensions | mm | 720×492×655 |
Net weight | kg | 130 |
