General Generator

A full lineup to produce optimum power for your needs.

Generators are indispensable as power sources at construction sites. Widely used for farms, houses, live TV broadcasts, various types of events, leisure activities, and other purposes, DEHRAY generators produce the optimal power to meet user needs. Offering high-performance power generation and durability as well as energy conservation and noise reduction, these products have won endorsement as the first choice of professionals around the world.

Output the power you need

Strong, flexible, general, reliable and durable. You can find the most suitable generator here.

Quieter operation, bigger power

High-efficient combustion system ensures sufficient combustion;

Control panel

All operation functions of the generator set are on the control panel, with a digital readable display showing operation time, output voltage and current. Breakers can protect generator set from overload damage.

Lifting hook and transport wheels

Integrated to enable simple and safe loading and transportation.

Easy portable

An open frame configuration means it's easy to handle and store when not in use.

Improved i-AVR technology

i-AVR adjustments are driven off the PMG generator versus a sensor winding in traditional AVR systems.
It can also communicate with your computer with a UART-RS232 interface. This allows the generators data: including voltage, current, and battery voltage to be seen from computer.

RDE2200X RDE2200E RDE3500X RDE3500E RDE3500T RDE6500X RDE6500E RDE6500Ei RDE6500X3 RDE6500E3 RDE6500Ei3 RDE6500T RDE6500Ti RDE6500T3 RDE6500Ti3 RDE6700T RDE6700TA RDE6700Ti RDE6700TAi RDE6700T3 RDE6700TA3 RDE6700Ti3 RDE6700TAi3 RDE8500X RDE8500E RDE8500Ei RDE8500X3 RDE8500E3 RDE8500Ei3 RDE8500T RDE8500Ti RDE8500T3 RDE8500Ti3 RDE8700T RDE8700TA RDE8700Ti RDE8700T3 RDE8700TA3 RDE8700Ti3 RDE7000STA RDE7000STA3 RDE8500STA RDE8500STA3 RDE15000EA RDE15000EA3 RDE12EA RDE12Ei RDE12EA3 RDE12Ei3 RDE12STA RDE12STAi RDE12STA3 RDE12STAi3 RDE19STA RDE19STA3 RGE2500X RGE4000X RGE6500E RGE6500E3

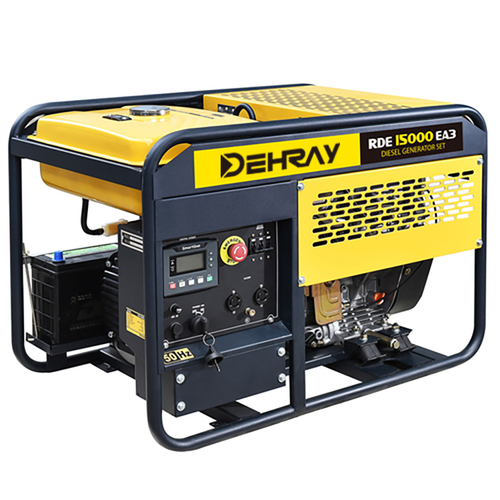

RDE15000EA3

General Generator

If you need a generator with high performance to be used near construction sites, farms or houses, DEHRAY general generator will be the best choice.

Stronger power
Output the power you need
Wide application
Easy portable

describe parameter

Stronger power

High-efficient combustion system ensures sufficient combustion;

muffler reduces exhaust noise greatly; engine noise is isolated in double structure and absorbed by special lining.

Wide application and wide range capacity can meet all requirements of clients.

Output the power you need

Strong, flexible, general, reliable and durable. You can find the most suitable generator here.

Control panel

Easy portable

An open frame configuration means it's easy to handle and store when not in use.

Wide application

Various models are avaliable to meet all customers' requirements.

Generator set

Rated frequency	Hz	50 60
Rated power	kVA	11.25 12.5
Max. power	kVA	12.5 13.75
Rated voltage	V	400/230 416/240
Rated current	A	16.3 17.4
Rated rotation speed	r/min	3000 3600

Generator

Pole No.		2
Phase number		Three phase
Excitation mode		Self-exciation and constant voltage
Power factor	COS	0.8(lag)
Insulation grade	mm	B

Engine

Engine type		WS2V88A
Structure type		V-twin, four stroke, direct-injected, air cooling
Bore x stroke	mm	88×72
Displacement	L	0.87
Compression ratio	mm	19 : 1
Rated power	kW	13 14
Lubrication system		Pressure splashed
Lube oil brand		Above CD or SAE 10W-30, 15W-40
Lube capacity	L	2.3
Starting system		12V Electric starter
Charging generator capacity	V-Ah	12V 36Ah
Fuel consumption ratio	g/kW.h	270 280
Fuel type		Diesel : 0# (summer), -10# (winter), -35# (chillness)

Genset

Panel type		General panel
Output	Receptacle	2-Single phase
Output	Connection pole	with
Nosie level(7m)	dB(A)	85
Fue tank capacity	L	25
Overall dimensions	mm	930×600×650
Net weight	kg	185
