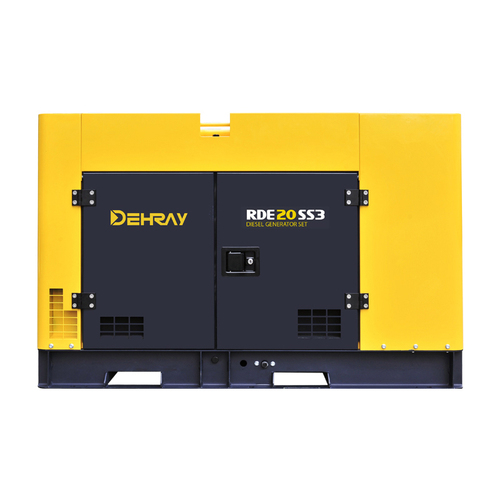

Ultra Silent Generator
The DEHRAY ultra silent range provides complete power solutions, making this series the preferred choice for a wide range of applications throughout the world.
Contact us
Robust and durable
Compact, robust and flexible structures ensure long service life and quiet operation.
Thicker painting treatments stand the wear and tear in extreme environmental conditions.
Cleaner, safer and quieter
Waterproof canopy ensures protection against ingress of dust and water.
All DEHRAY generators meet or exceed relevant standards for noise and emission regulations.
Design for easy transportation
Lifting hook and forklift access are standard on all units. Compact structure minimize transportation costs.
Easy to use
Control panel is simple and easy to operate.
Built-in monitoring system ensures safe operation and basic parameter display
Generator set
| RDE11SS | RDE16SS | RDE13SS3 | RDE20SS3 | RDE32SS3 |
RDE20SS |
RDE26SS |
RDE35SS | RDE25SS3 | RDE32SS3 | RDE43SS3 | RDE60SS3 | RDE75SS3 | RDE95SS3 | |||||||||||||||||
| Rated frequency | HZ | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | |
| Prime power | KVA | 8.5 | 10.5 | 13 | 15.5 | 10.6 | 13.1 | 16.2 | 19.3 | 30 | 32.5 | 18 |
20 |
24 | 26 | 30 | 35 | 22.5 | 25 | 30 | 32.5 | 37.5 | 43.75 | 50 | 60 | 62.5 | 75 | 75 | 94 | |
| KW | 8.5 | 10.5 | 13 | 15.5 | 8.5 | 10.5 | 13 | 15.5 | 24 | 26 | 18 | 20 | 24 | 26 | 30 | 35 | 18 | 20 | 24 | 26 | 30 | 35 | 40 | 48 | 50 | 60 | 60 | 75 | ||
| Standby power | KVA | 9.5 | 11.5 | 14 | 17 | 11.6 | 14.5 | 17.5 | 21.2 | 32.5 | 35 | 20 | 24 | 26 | 28 | 33 | 38.5 | 25 | 30 | 32.5 | 35 | 41 | 48 | 55 | 66.5 | 69 | 82.5 | 82.5 | 103 | |
| KW | 9.5 | 11.5 | 14 | 17 | 9.3 | 11.6 | 14 | 17 | 26 | 28 | 20 | 24 | 26 | 28 | 33 | 38.5 | 20 | 24 | 26 | 28 | 33 | 38.5 | 44 | 53 | 55 | 66 | 66 | 82.5 | ||
| Rated voltage | V | 115/230 | 120/240 | 115/230 | 120/240 | 400/230 | 416/240 | 400/230 | 416/240 | 400/230 | 416/240 | 115/230 | 120/240 | 115/230 | 120/240 | 115/230 | 120/240 | 400/230 | 416/240 | 400/230 | 416/240 | 400/230 | 416/240 | 400/230 | 416/240 | 400/230 | 416/240 | 400/230 | 416/240 | |
| Rated current | A | 73.9/37 | 87.5/43.8 | 113/56.5 | 129.2/64.6 | 15.3 | 18.2 | 23.4 | 26.8 | 43.5 | 45.1 | 156.5/78.2 | 166.7/83.3 | 208.7/104.4 | 216.7/108.3 | 260.9/130.4 | 291.7/145.8 | 32.6 | 34.7 | 43.5 | 45.1 | 54.1 | 60.7 | 72.5 | 83.4 | 90.6 | 104.2 | 108.7 | 130.6 | |
| Rated rotation speed | r/min | 1500 | 1800 | 1500 | 1800 | 1500 | 1800 | 1500 | 1800 | 1500 | 1800 | 1500 | 1800 | 1500 | 1800 | 1500 | 1800 | 1500 | 1800 | 1500 | 1800 | 1500 | 1800 | 1500 | 1800 | 1500 | 1800 | 1500 | 1800 | |
Generator
| Generator type | FD1C1-4 (Single-phase) | FD1ES1-4 (Single-phase) | FD1C1-4 (Three-phase) | FD1ES1-4 (Three-phase) | XN184G/FD1G1-4 | ||||||
| Pole No. | 4 | 4 | 4 | 4 | 4 | ||||||
| Phase number | Single-phase | Single-phase | Three-phase | Three-phase | Three-phase | ||||||
| Excitation mode | Brushless, self-excitation and constant voltage(with AVR) | Brushless, self-excitation and constant voltage(with AVR) | Brushless, self-excitation and constant voltage(with AVR) | Brushless, self-excitation and constant voltage(with AVR) | Brushless, self-excitation and constant voltage(with AVR) | ||||||
| Power factor | COSΦ | 1.0 | 1.0 | 0.8(lag) | 0.8(lag) | 0.8(lag) | |||||
| Insulation grade | H | H | H | H | H | ||||||
Engine
| Engine type | RD385D | RD485D | RD385D | RD485D | WP2.3D33E200/WP2.3D36E201 | |||||||
| Stucture type | 3-cylinder, in-lined, 4-stroke, direct-injected, water-cooled | 4-cylinder, in-lined, 4-stroke, direct-injected, water-cooled | 3-cylinder, in-lined, 4-stroke, direct-injected, water-cooled | 4-cylinder, in-lined, 4-stroke, direct-injected, water-cooled | 4- cylinder,in-lined,4-stroke,water-cooled,turbocharger | |||||||
| Bore×stroke | mm | 85×90 | 85×95 | 85×90 | 85×95 | 89x92 | ||||||
| Displacement | L | 1.532 | 2.156 | 1.532 | 2.156 | 2.289 | ||||||
| Compression ratio | 18∶1 | 18∶1 | 18∶1 | 18∶1 | 17.5:1 | |||||||
| Rated power | KW | 11 | 13 | 17 | 20 | 11 | 13 | 17 | 20 | 30 | 33 | |
| Lubrication system | Pressure splashed | Pressure splashed | Pressure splashed | Pressure splashed | Pressure splashed | |||||||
| Lube oil brand | Above CD grade or SAE 10W-30, 15W-40 | Above CD grade or SAE 10W-30, 15W-40 | Above CD grade or SAE 10W-30, 15W-40 | Above CD grade or SAE 10W-30, 15W-40 | Above CD grade or SAE 10W-30, 15W-40 | |||||||
| Starter system | 12V Electric starter | 12V Electric starter | 12V Electric starter | 12V Electric starter | 12V Electric starter | |||||||
| Starter motor capacity | V-KW | 12V 3KW | 12V 3KW | 12V 3KW | 12V 3KW | 12V 3.5KW | ||||||
| Battery capacity | V-Ah | 12V 65Ah | 12V 65Ah | 12V 65Ah | 12V 65Ah | 12V 80Ah | ||||||
| Engine fuel consumption | g/KW.h | 255 | 247 | 255 | 247 | 212 210 | ||||||
| Fuel type | 0#(summer)-10#(winter)-35#(chillness) diesel | 0#(summer)-10#(winter)-35#(chillness) diesel | 0#(summer)-10#(winter)-35#(chillness) diesel | 0#(summer)-10#(winter)-35#(chillness) diesel | 0#(summer)-10#(winter)-35#(chillness) diesel | |||||||
Genset
| Control panel type | Smartgen digital panel | Smartgen digital panel | Smartgen digital panel | Smartgen digital panel | Smartgen digital panel | ||||||
| Output | Receptacle | 2-single phase | 2-single phase | 2-single phase | 2-single phase | 2-single phase | |||||
| Connection pole | with | with | with | with | with | ||||||
| Fuel tank capacity | L | 68 | 68 | 68 | 68 | 95 | |||||
| Overall dimension | mm | 1600×780×1050 | 1600×780×1050 | 1600×780×1050 | 1600×780×1050 |
1930x950x1200 |
|||||
| XN184G/FD1G1-4 |
