Super parallel capacity
Almost perfect sinewave output
Perfect module and genset protection function

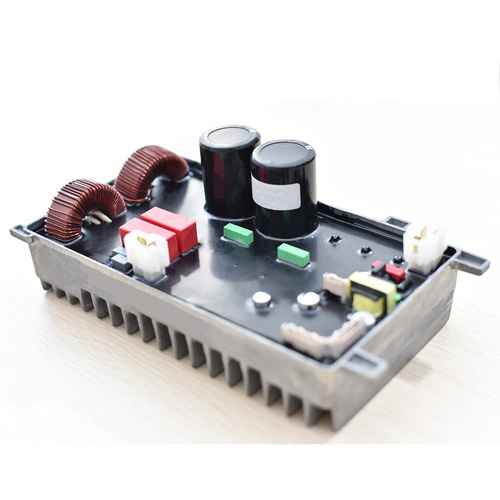

DEHRAY inverter control module provide optimised electricity for reactive loads and electronic loads, ensuring the best application performance and product longevity.
The cutting-edge technology allows for an exceptionally compact product, with an alternator almost half the size of more traditional generators. Ideal for powering highly sensitive electronic equipment, such as computers.
Super parallel capacity
Almost perfect sinewave output
Perfect module and genset protection function
|
Engine power |
Gasoline |
|
|
Input voltage |
V |
Three phase medium frequency AC voltage 330-500V or 165-250V |
|
Output voltage |
V |
Standard voltage 220V, 230V, 120V, 100V etc. |
|
Output waveform distortion THD |
Linear load<=3% |
|
|
Output frequency |
Hz |
50/60Hz (+/-0.1Hz) |
|
Output power |
W |
2600-3500W |
|
Governor characteristics |
When throttle is on, engine running speed automatically varies based on output and temperature, so as to save fuel and reduce noise | |
|
Protections |
Short circuit, overvoltage, overload, high temperature, undervoltage, etc. | |
| Display |
Can connect external LCD display panel to show voltage, VA, run time etc. |
|
|
Parallel feature |
When throttle is on, engine running speed automatically varies based on output and temperature, so as to save fuel and reduce noise |
