Control Module

DEHRAY Inverter Technology regulates surges of raw power and evens them out to the same high quality electricity as outlets from your home. Our Inverter range can produce 700 W to 5000 W of portable power, enough to run anything from a laptop to a cottage.

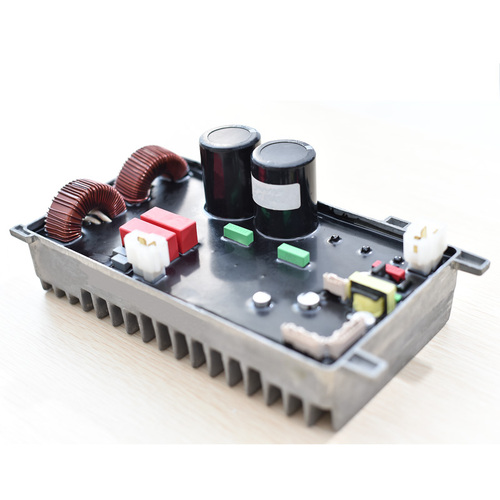

2000W Control Module
Control Module
The cutting-edge technology allows for an exceptionally compact product, with an alternator almost half the size of more traditional generators. Ideal for powering highly sensitive electronic equipment, such as computers.

Super parallel capacity
Almost perfect sinewave output
Perfect module and genset protection function
Contact us

DEHRAY inverter control module provide optimised electricity for reactive loads and electronic loads, ensuring the best application performance and product longevity.
The cutting-edge technology allows for an exceptionally compact product, with an alternator almost half the size of more traditional generators. Ideal for powering highly sensitive electronic equipment, such as computers.



Super parallel capacity
Almost perfect sinewave output
Perfect module and genset protection function

Basic parameters

Engine power



Gasoline

Input voltage

V

Three phase medium frequency AC voltage 330-500V or 165-250V

Output voltage

V

Standard voltage 220V, 230V, 120V, 100V etc.

Output waveform distortion THD



Linear load<=3%

Output frequency

Hz

50/60Hz (+/-0.1Hz)

Output power

W

1500-2500W

Governor characteristics

  When throttle is on, engine running speed automatically varies based on output and temperature, so as to save fuel and reduce noise

Protections

  Short circuit, overvoltage, overload, high temperature, undervoltage, etc.
Display

Can connect external LCD display panel to show voltage, VA, run time etc.

Parallel feature



When throttle is on, engine running speed automatically varies based on output and temperature, so as to save fuel and reduce noise
