Water Pump

DEHRAY offers many different water pump models for a wide variety of applications. These water pumps excel in discharging large amounts of water quickly and easily, specially designed to work with salted water, agricultural fertilizer or industrial waste. Each of our water pumps offers outstanding performance.



Excellent performance
Water pump adopts DEHRAY engine as power and has incomparable economic engine oil and fuel consumption. It's very efficient, emitting fewer emissions than a regular 2-Stroke engine and provides lower noise levels.
High flow rate
Designed with an abrasion-resistant cast iron volute and impeller, RDP models have specially designed vanes for a larger discharge capacity, The debris size capacity allows them to deal with gravel and other suspended debris.
Easy to start
DEHRAY is also easy to start and easy to use. Our sewage pump engines are perfectly matched and DEHRAY engineered for quality and precision.
Durable construction
Main parts of the pump are designed for wear and corrosion resistance.
Easy maintenance
Cleaning the inside of the pumps can be performed by just removing a few bolts.

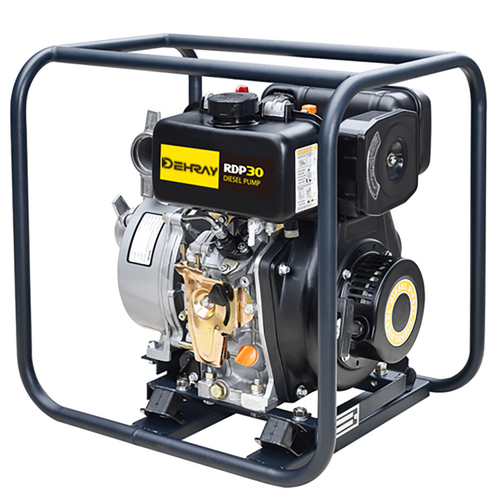

RDP30
Water Pump
Featuring DEHRAY commercial grade engine and rugged full frame protection with anti-vibration mounts, these pumps feature a fixed mounted cast iron volute and impeller with a silicon carbide seal. This is the ultimate combination of features to provide unsurpassed performance and durability in the toughest conditions.

High flow rate
Excellent performance
Easy maintenance
Durable construction
Contact us

High flow rate

Designed with an abrasion-resistant cast iron volute and impeller, RDP models have specially designed vanes for a larger discharge capacity, The debris size capacity allows them to deal with gravel and other suspended debris.



Excellent performance

Water pump adopts DEHRAY engine as power and has incomparable economic engine oil and fuel consumption. It's very efficient, emitting fewer emissions than a regular 2-Stroke engine and provides lower noise levels.



Easy maintenance

Cleaning the inside of the pumps can be performed by just removing a few bolts.



Durable construction

Main parts of the pump are designed for wear and corrosion resistance.

Basic parameters
Type   Diesel pump
Suction & discharge port diameter mm (in) 80 (3")
Rated capacity  m³/h 30.0
Rated total head m 13
Self-priming time s/4m 120
Max.suction head m 8.0
Rotaion speed r/min 3600
Fuel consumption g/kW.h 285
Noise level dB(A)/7m 76.0
Overall dimension mm (LxWxH) 570x445x550
Net weight kg 49
Engine model   RD178
Rated power kW 4.0
Rated speed r/min 3600
Displacement cm³ 296
Starter system   Recoil starter
