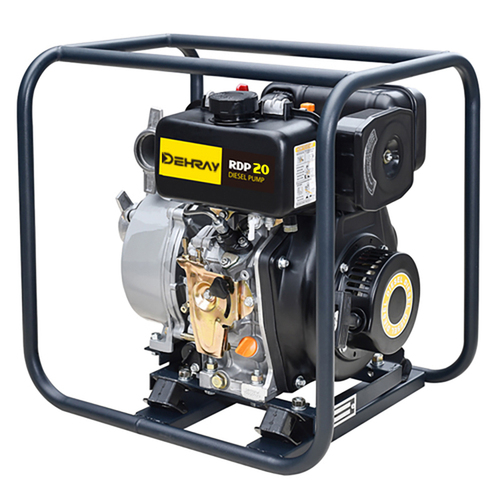

RDP20
Water Pump
Featuring DEHRAY commercial grade engine and rugged full frame protection with anti-vibration mounts, these pumps feature a fixed mounted cast iron volute and impeller with a silicon carbide seal. This is the ultimate combination of features to provide unsurpassed performance and durability in the toughest conditions.
High flow rate
Excellent performance
Easy maintenance
Durable construction
Contact us
High flow rate
Excellent performance
Easy maintenance
Durable construction
High flow rate
Designed with an abrasion-resistant cast iron volute and impeller, RDP models have specially designed vanes for a larger discharge capacity, The debris size capacity allows them to deal with gravel and other suspended debris.
Excellent performance
Water pump adopts DEHRAY engine as power and has incomparable economic engine oil and fuel consumption. It's very efficient, emitting fewer emissions than a regular 2-Stroke engine and provides lower noise levels.
Easy maintenance
Cleaning the inside of the pumps can be performed by just removing a few bolts.
Durable construction
Main parts of the pump are designed for wear and corrosion resistance.
Basic parameters
| Type | Diesel pump | |
| Suction & discharge port diameter | mm (in) | 50 (2") |
| Rated capacity | m³/h | 22.0 |
| Rated total head | m | 15 |
| Self-priming time | s/4m | 80 |
| Max. suction head | m | 8.0 |
| Rotaion speed | r/min | 3600 |
| Fuel consumption | g/kW.h | 288 |
| Noise level | dB(A)/7m | 74.0 |
| Overall dimension | mm (LxWxH) | 525x410x515 |
| Net weight | kg | 38.5 |
| Engine model | RD170 | |
| Rated power | kW | 2.8 |
| Rated speed | r/min | 3600 |
| Displacement | cm³ | 211 |
| Starter system | Recoil starter |
