Outstanding Economic Performance

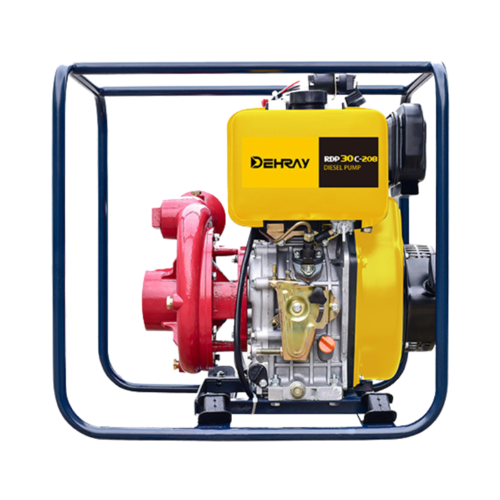

The pump is powered by the Dehray engine series, offering unparalleled fuel and oil economy.
Lightweight and Compact
With an optimized design and compact structure, the overall weight of the machine is significantly reduced. The small body facilitates transportation and installation, saving space, and is particularly suitable for sites with limited space.
Simple Operation
Equipped with both manual pull-start and electric start, simplifying the operation process and lowering the usage threshold.
Fast Water Priming
Unique self-priming design quickly establishes a vacuum. Built-in auxiliary devices significantly shorten the water priming time, improving usage efficiency.
High Lift
Multi-stage impeller structure provides strong power. Optimized hydraulic model ensures stable high-lift output, meeting long-distance transport needs.
| Model | RDP40C-150 | RDP40CE-150 | ||
| Cast Iron Pump | Pump model | DTF40-150 | ||
| Pump size | 4×4-150 | |||
| Max flow | m3/H | 120 | ||
| Max lift head | m（ft） | 55（180.44） | ||
| Max suction | m（ft） | 6（19.68） | ||
| Rated speed | r/min | 3600 | ||
| Engine | Engine model | 192F | 192FE | |
| Rated power | KW | 8.6 | ||
| Displacement | ml | 499 | ||
| Start mode | Recoil | Electric | ||
| Fuel tank capacity | L | 5.5 | ||
| Pump Set | Continuous running | H | 7.5 | |
| Dimension | mm | 645×480×610 | ||
